This brushless DC stand fan, manufactured by Guangzhou Mega Technology Co., Ltd., comes in various models and sizes, measuring 50x50x10mm. It offers two voltage ratings: 5V and 12V. A variety of bearing types (ball bearing, oil-bearing, and hydraulic) are available, along with models varying in speed, air volume, air pressure, and noise level to meet diverse customer needs. The outer frame and blades are constructed of UL94V-0 fire-resistant plastic, ensuring safety and durability.

Parameter Value

Product Type: DC brushless fan

1. Size: Φ50x10mm
2. Bearing Type: ball、Sleeve、Hydro Bearing
3. Frame Material: Plastic (UL94V-0)
4. Blade Material: Plastic (UL94V-0)
5. Weight:12g
6. Rated Voltage: 5V,12V
7. Rated Current: 1.8-6A(5V)；6-13.5A(12V)
8. Rated Input Power:0.6-3W；
9. Speed:4000-6500RPM
10. Air Flow:6.45-14.13CFM
11. Maximum Air Pressure:1.96-4.7mH2O
12. Noise Level:27-35.5dB-A

Key Features and Advantages:

Key Features

1. Standardized Dimensions: The product has a standard size of 50×50×10mm, making it easy to integrate into a wide range of electronic devices.
2. Diverse Model Selection: It offers a rich variety of models with different voltage options (5V and 12V), bearing types (Ball, Sleeve, Hydro), and performance parameters (speed, air flow, air pressure, noise), catering to diverse application needs.
3. High-Quality Materials: The frame and impeller are made from UL94V-0 grade flame-retardant plastic, which enhances product safety by effectively resisting ignition.

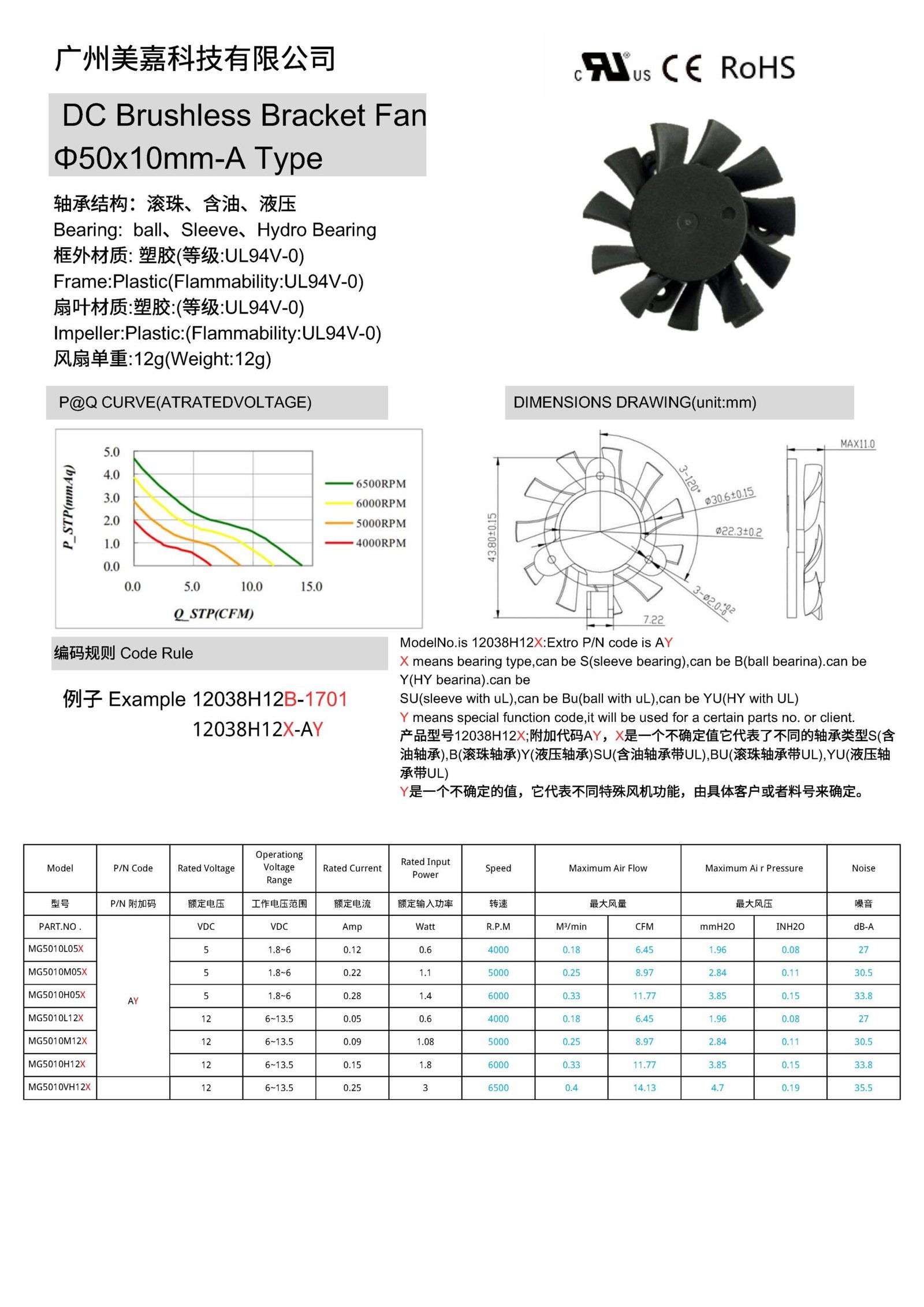

4. Transparent Technical Specifications: A detailed technical parameter table is provided, including rated voltage, current, power, speed, air flow, air pressure, and noise, which helps customers make precise selections based on their specific requirements.
5. Performance Curve Chart: The included P&Q curve (Pressure-Flow curve) is a crucial tool for professional customers to evaluate fan performance, highlighting the product’s professionalism and reliability.
6. Clear Coding Rules: The image clearly explains the product’s coding rules, such as “X” representing the bearing type and “AY” for special function codes, making it easier for customers to understand the model specifications.

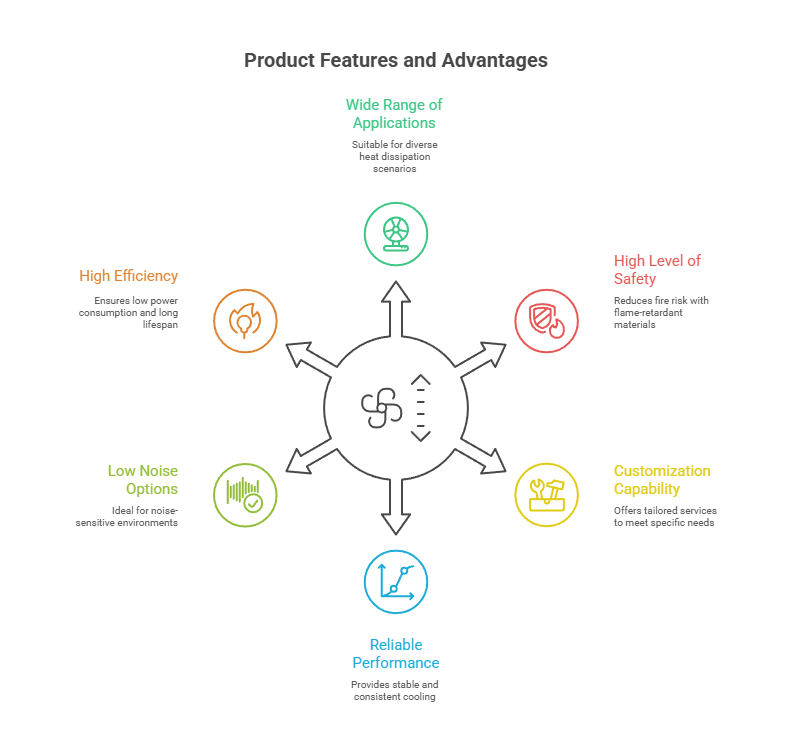

Key Advantages

1. Wide Range of Applications: Due to its standardized size and versatile performance options, the fan is suitable for various heat dissipation scenarios, including computer cases, servers, small appliances, industrial equipment, and medical devices.
2. High Level of Safety: The use of UL94V-0 grade flame-retardant materials significantly reduces the risk of fire from overheating or short circuits, making the product safer and more reliable.
3. Customization Capability: The clear coding rules and multiple configuration options imply that the manufacturer can offer customized services, such as adjusting bearing types, voltage, or adding special functions to meet specific project requirements.
4. Reliable Performance: The detailed performance curves and parameter tables provide strong technical support, demonstrating the product’s stable and reliable performance and assisting customers with performance comparison and design selection.
5. Low Noise Options: Certain models, such as the MG5010M05X, have a low noise level of 27dB-A, making them suitable for environments with strict noise control requirements, like office equipment or quiet home appliances.
6. High Efficiency: As a DC brushless fan, its design generally features high efficiency, low power consumption, and a long lifespan, providing stable and continuous cooling support for devices.

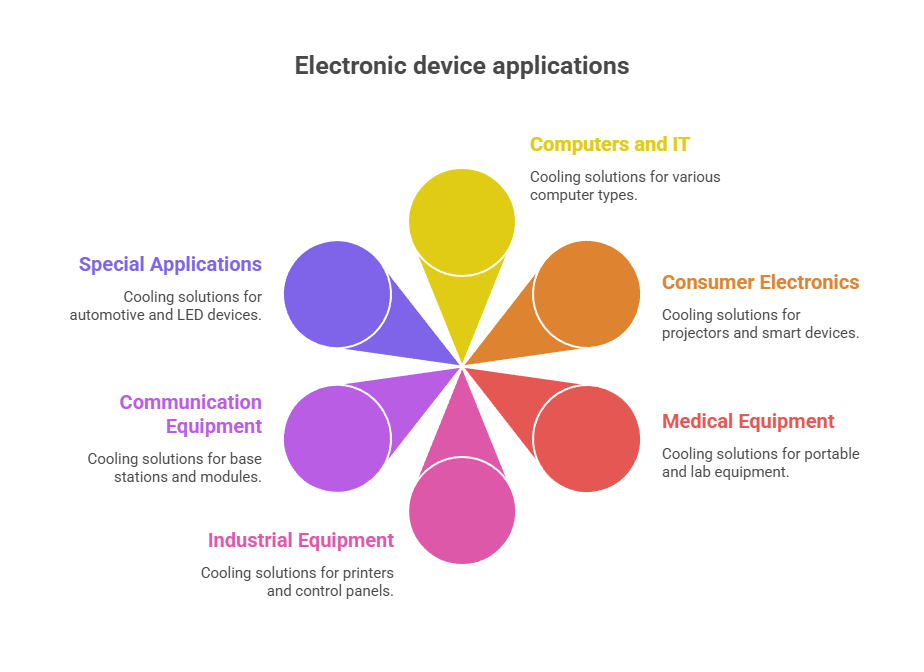

Applications

1. Computers and IT Equipment

1. Desktop Computers: Used for internal heat dissipation in small form factor PCs, mini PCs, or all-in-one machines, especially in chassis with strict space limitations.
2. Servers: For localized cooling of chips, hard drives, or power supply modules inside server chassis, network switches, and routers.
3. Network Attached Storage (NAS): Provides cooling for hard drives in home or enterprise NAS devices to ensure stable operation and data integrity.
4. Industrial PCs: Used for internal cooling of industrial control computers to ensure stable operation in harsh environments.

2. Consumer Electronics

1. Projectors: Dissipates heat from the light source or motherboard inside projectors to prevent overheating from affecting image quality and device lifespan.
2. Smart Home Devices: Used internally in smart speakers, smart routers, and smart cameras to cool processors and circuit boards.
3. TV Boxes/Game Consoles: Provides cooling for the chips inside set-top boxes, TV boxes, or small game consoles, preventing performance degradation from long-term operation.

3. Medical Equipment

1. Portable Medical Devices: Used in small medical devices like oximeters, monitors, and ventilators to cool sensitive electronic components and ensure the accuracy and reliability of the equipment.
2. Laboratory Instruments: For internal heat dissipation in various laboratory analysis instruments and measuring devices.

4. Industrial and Automation Equipment

1. 3D Printers: Used to cool the print head or motherboard of 3D printers, ensuring stable and precise printing.
2. Automation Control Cabinets: Provides localized cooling for heat-generating components like PLCs and drivers in small automation control cabinets or panels.
3. Electronic Measuring Instruments: Such as oscilloscopes and signal generators, where internal cooling is required to prevent temperature from affecting measurement accuracy.

5. Communication Equipment

1. Communication Base Stations: Used inside small or micro base stations to cool radio frequency modules and control boards.
2. Optical Modules: For internal cooling of high-speed optical modules or transceivers to cool lasers and chips, ensuring transmission performance.

6. Other Special Applications

1. Automotive Electronics: Provides cooling for internal chips in automotive electronic devices like car navigation systems, car chargers, and driving recorders.
2. LED Lighting: Used for heat dissipation in high-power LED lighting fixtures to extend the lifespan of the LED bulbs.
3. Small Appliances: Certain small appliances, such as air purifiers, dehumidifiers, or fans, may also use similar cooling fans.
