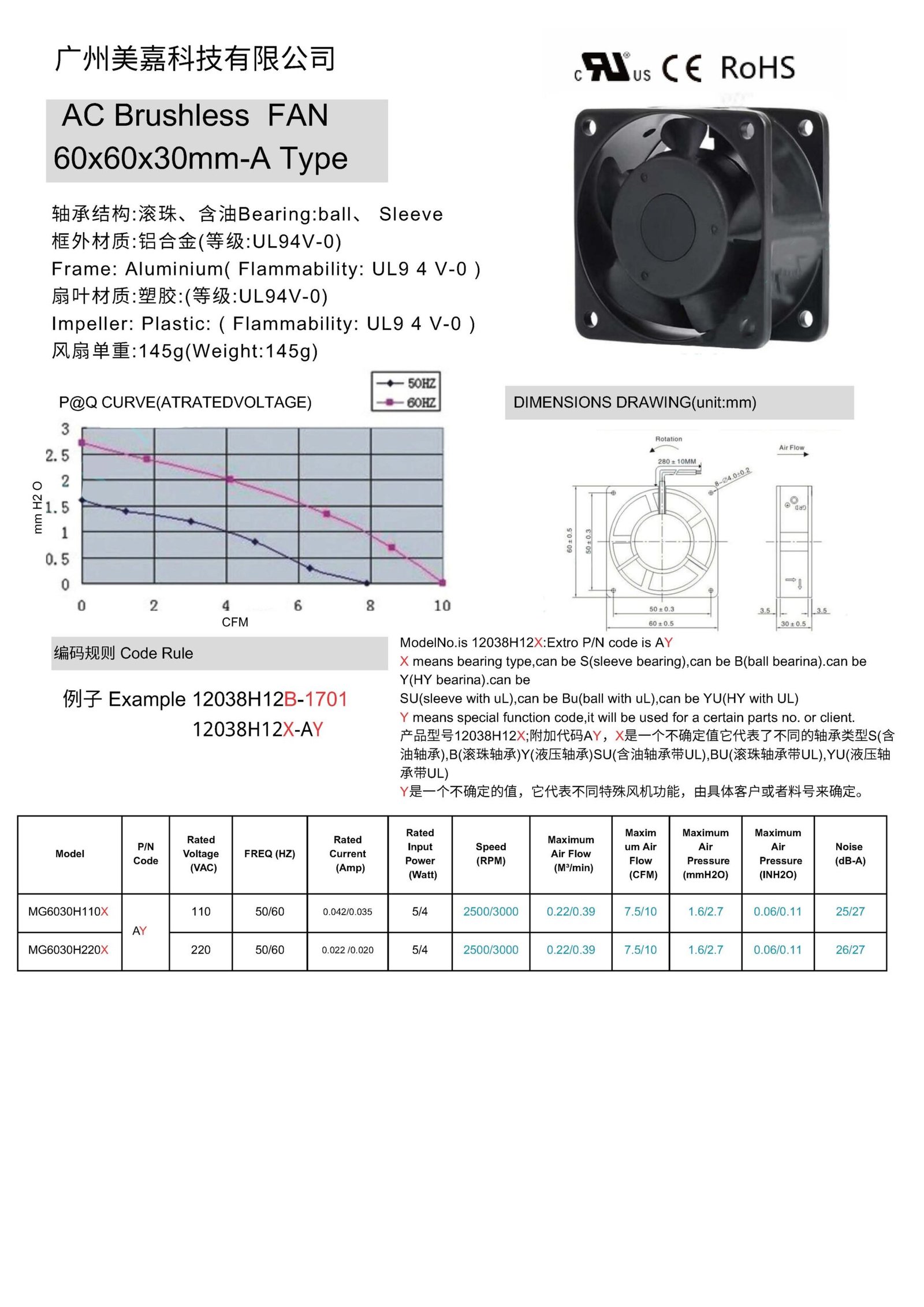

This 60x60x30mm AC brushless fan produced by Guangzhou Mega Technology Co., Ltd. is a high-performance, low-noise cooling solution. It is available in two voltage specifications, 110VAC and 220VAC, and is suitable for 50/60Hz AC power supply. The fan adopts an aluminum alloy frame and flame-retardant plastic fan blades, which meet the UL94V-0 standard to ensure safety and reliability. Users can choose different types such as ball bearings, oil-containing bearings or hydraulic bearings according to their needs. The fan has the characteristics of high air volume and high air pressure, and is certified by CUS, CE and ROHS, meeting international safety regulations and environmental protection standards. Its detailed electrical parameters and air volume and pressure curves, as well as the size diagram, are convenient for users to select and install. This fan is widely used in scenes that require heat dissipation, such as industrial control equipment, communication equipment, servers, power supplies, medical equipment and household appliances.

Parameter Value

Product Type: AC brushless fan

1. Size: 60x60x30mm
2. Bearing Type: ball、Sleeve
3. Frame Material: Aluminium (UL94V-0)
4. Blade Material: Plastic (UL94V-0)
5. Weight:145g
6. Rated Voltage: 110V,220V
7. Rated Current:0.042/0.035A（110V）；022/0.020A（220V）；
8. Rated Input Power:5/4W
9. Speed:2500/3000RPM
10. Air Flow:7.5/10CFM
11. Maximum Air Pressure:1.6/2.7mH2O
12. Noise Level:25/27dB-A

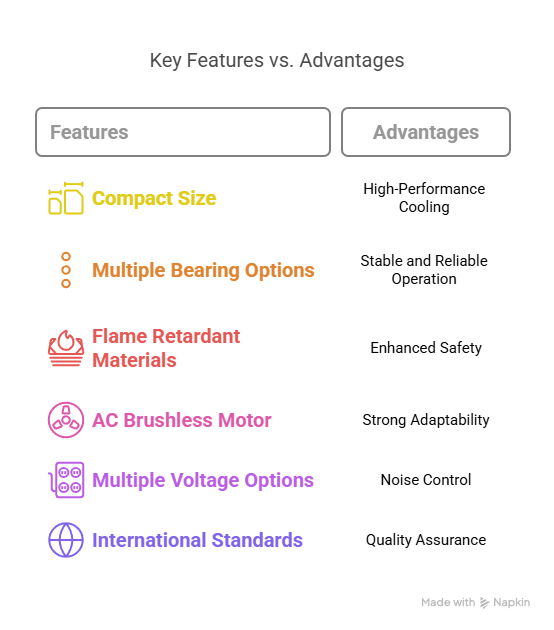

Key Features and Advantages:

Key Features:

1.  Compact Size: The 60x60x30mm dimensions make it suitable for space-constrained applications.

2.  Multiple Bearing Options: Offers ball bearings, sleeve bearings, and hydraulic bearings to meet different application needs.

3.  Flame Retardant Materials: Both the frame and impeller are made of UL94V-0 flame-retardant materials for enhanced safety.

4.  AC Brushless Motor: Employs an AC brushless motor for stable and reliable operation.

5.  Multiple Voltage Options: Available in 110VAC and 220VAC versions to accommodate various power environments.

6.  International Standards Compliance: Certified with CUS, CE, and RoHS standards, meeting international safety and environmental requirements.

Key Advantages:

1.  High-Performance Cooling: Provides high airflow and air pressure for effective heat dissipation.

2.  Stable and Reliable Operation: The AC brushless motor ensures stable and reliable fan operation.

3.  Enhanced Safety: Flame-retardant materials and international certifications improve product safety.

4.  Strong Adaptability: Multiple bearing and voltage options make it suitable for a wide range of applications.

5.  Noise Control: Effectively manages noise levels while delivering powerful airflow.

6.  Quality Assurance: Manufactured by a reputable company, ensuring product quality.

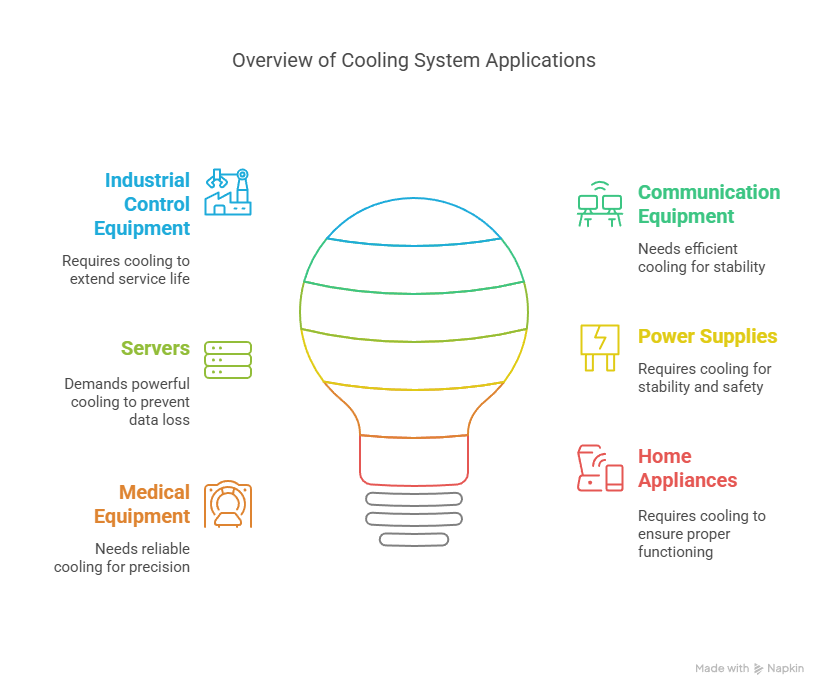

Applications

1. Industrial Control Equipment:

1. Application Range: Automation equipment, CNC machine tools, frequency converters, PLCs, etc.
2. Reason: These devices generate a significant amount of heat during operation, requiring a stable and reliable cooling system to ensure normal operation and extend service life.

2. Communication Equipment:

1. Application Range: Server racks, switches, routers, base stations, etc.
2. Reason: Communication equipment demands high stability and reliability, and prolonged operation can lead to high temperatures, necessitating an efficient cooling system to prevent overheating.

3. Servers:

1. Application Range: Data centers, enterprise servers, workstations, etc.
2. Reason: Servers are core data processing devices that require powerful cooling systems to ensure long-term stable operation and prevent data loss and equipment damage.

4. Power Supplies:

1. Application Range: Industrial power supplies, UPS power supplies, switching power supplies, etc.
2. Reason: Power supplies generate a considerable amount of heat during energy conversion, requiring effective cooling systems to ensure stability and safety.

5. Medical Equipment:

1. Application Range: Medical imaging equipment, analytical instruments, monitoring equipment, etc.
2. Reason: Medical equipment demands high stability and accuracy, requiring reliable cooling systems to ensure normal operation and measurement precision.

6. Home Appliances:

1. Application Range: Refrigerators, air conditioners, computers, projectors, etc.
2. Reason: Home appliances generate heat during operation, requiring cooling systems to ensure proper functioning and extend service life.

Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers’ performance at significantly lower prices.

We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.

Reasons to Choose Us

1. Factory Direct Sales, Preferential Price: We are the manufacturer, eliminating intermediate links, and providing you with the most competitive price.
2. Quality Assurance, Worry-Free After-Sales: We provide perfect after-sales service, so you can buy without worry.
3. Professional Team, Customized Service: We have a professional R & D team to provide you with customized solutions.
