Product Type: DC brushless fan

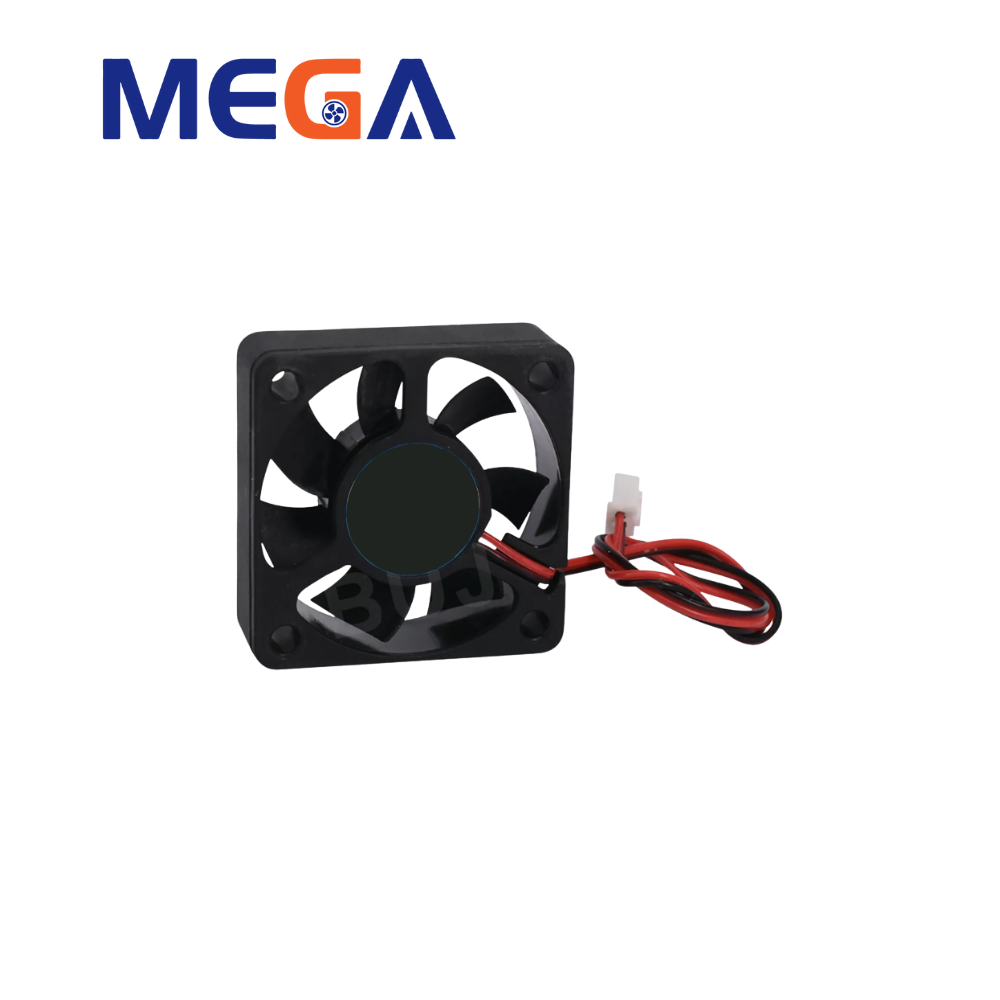

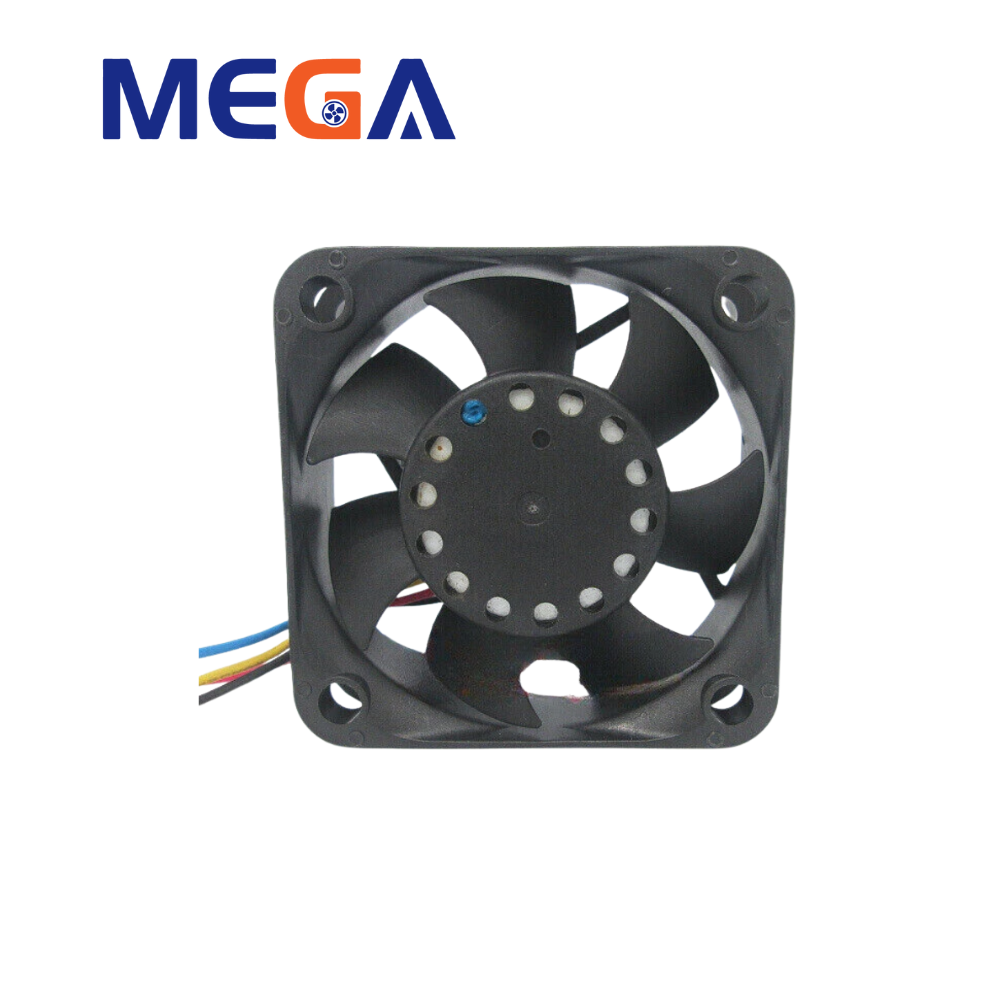

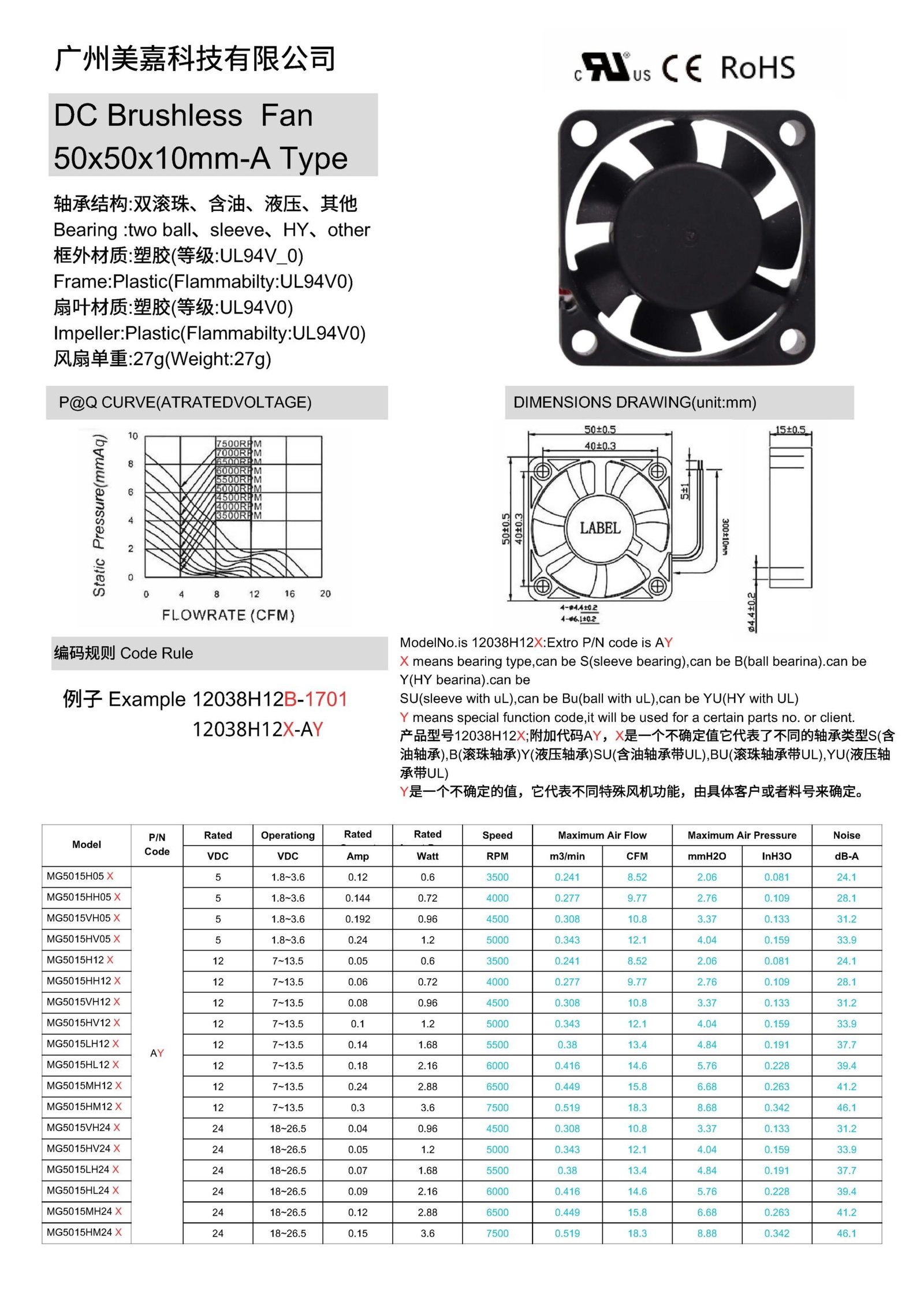

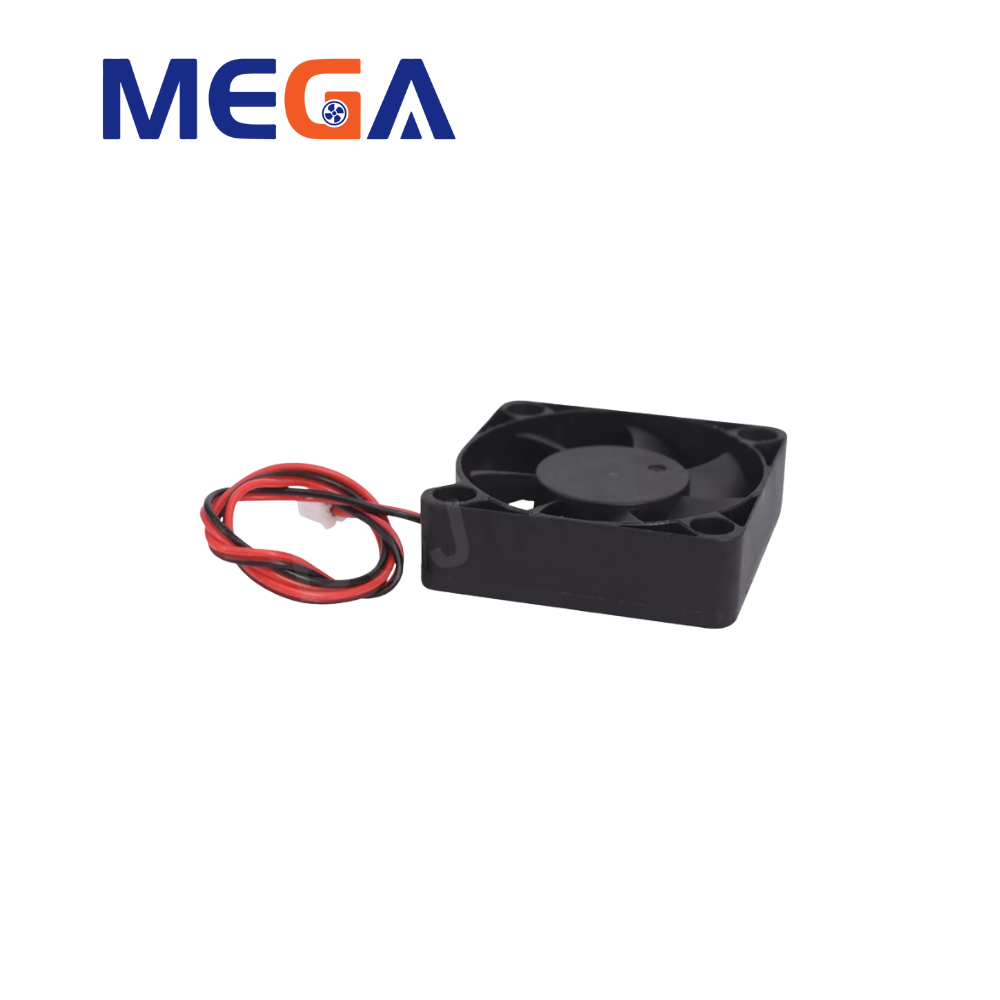

This is a 50x50x10mm DC Brushless Fan (DC Brushless Fan) produced by Guangzhou Mega Technology Co., Ltd., with model specification A Type. It is mainly used for heat dissipation and complies with multiple international certifications such as CE, UL, RoHS, and provides two bearing types: oil-containing/hydraulic bearings (Sleeve Bearing) and ball bearings (Ball Bearing) to meet different life and performance requirements. The fan frame and impeller are made of UL94V0 grade flame retardant plastic. The data sheet lists in detail the performance parameters such as air volume, static pressure, power consumption and noise of multiple models from low speed (such as 4000 RPM) to ultra-high speed (such as 7500 RPM) under different rated voltages (such as 5V, 12V, 24V), so that users can make accurate selections based on specific heat dissipation and noise requirements.
Parameter Value
Product Type: DC brushless fan
Model | Rated Voltage | Operationg Voltage Range | “Rated | |||||
Current “ | “Rated | |||||||
Input Power “ | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||||
VDC | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A | |
MG5015H05 X | 5 | 1.8~3.6 | 0.12 | 0.6 | 3500 | 8.52 | 2.06 | 24.1 |
MG5015HH05 X | 5 | 1.8~3.6 | 0.144 | 0.72 | 4000 | 9.77 | 2.76 | 28.1 |
MG5015VH05 X | 5 | 1.8~3.6 | 0.192 | 0.96 | 4500 | 10.8 | 3.37 | 31.2 |
MG5015HV05 X | 5 | 1.8~3.6 | 0.24 | 1.2 | 5000 | 12.1 | 4.04 | 33.9 |
MG5015H12 X | 12 | 7~13.5 | 0.05 | 0.6 | 3500 | 8.52 | 2.06 | 24.1 |
MG5015HH12 X | 12 | 7~13.5 | 0.06 | 0.72 | 4000 | 9.77 | 2.76 | 28.1 |
MG5015VH12 X | 12 | 7~13.5 | 0.08 | 0.96 | 4500 | 10.8 | 3.37 | 31.2 |
MG5015HV12 X | 12 | 7~13.5 | 0.1 | 1.2 | 5000 | 12.1 | 4.04 | 33.9 |
MG5015LH12 X | 12 | 7~13.5 | 0.14 | 1.68 | 5500 | 13.4 | 4.84 | 37.7 |
MG5015HL12 X | 12 | 7~13.5 | 0.18 | 2.16 | 6000 | 14.6 | 5.76 | 39.4 |
MG5015MH12 X | 12 | 7~13.5 | 0.24 | 2.88 | 6500 | 15.8 | 6.68 | 41.2 |
MG5015HM12 X | 12 | 7~13.5 | 0.3 | 3.6 | 7500 | 18.3 | 8.68 | 46.1 |
MG5015VH24 X | 24 | 18~26.5 | 0.04 | 0.96 | 4500 | 10.8 | 3.37 | 31.2 |
MG5015HV24 X | 24 | 18~26.5 | 0.05 | 1.2 | 5000 | 12.1 | 4.04 | 33.9 |

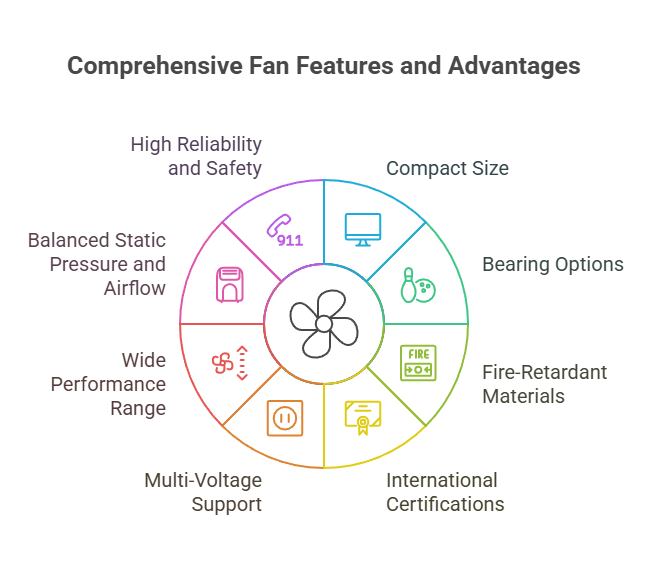

Key Features and Advantages:
Key Features
Core Advantages

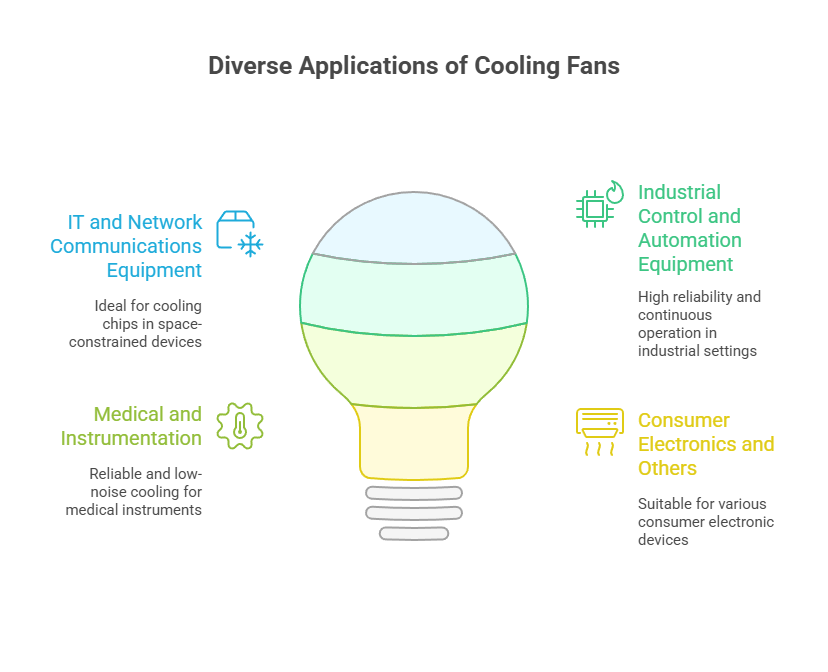

Given its small size and range from silent to high-speed options, the fan is ideal for cooling heat-generating chips or modules in space-constrained IT and networking devices.
Performance Level | Specific Application Scenario | Specific Equipment Examples |
L/M (Low/Medium Speed) | Silent and Basic Cooling for secondary components or devices with high noise sensitivity in home/office settings. | Small Routers, Home Gateways, Small Switches, Set-Top Boxes (STB). |
H/HH (High/Ultra-High Speed) | High Power Density Cooling for main chips or networking equipment that generates significant heat under heavy load. | Enterprise Access Points (APs), Small Industrial Switches, Fiber Optic Transceivers, Mini Servers/Edge Servers. |
Industrial environments demand high reliability and continuous operation, which align well with the fan’s Ball Bearing (B) models and flame-retardant material properties.
Performance Level | Specific Application Scenario | Specific Equipment Examples |
M/H (Medium/High Speed) | Embedded System Cooling for industrial motherboards, processors, or power supply modules. | Industrial Personal Computers (IPCs), Programmable Logic Controllers (PLCs), Human-Machine Interface (HMI) Panels. |
H/HH (High/Ultra-High Speed) | High Static Pressure Applications to push air into complex industrial enclosures or those with filter screens. | Small Heat Dissipation Modules in Inverters, Digital Video Recorders (DVR/NVR) in surveillance systems, Small Automation Control Cabinets. |
Medical and precision instruments require cooling solutions that are both reliable and low-noise.
Performance Level | Specific Application Scenario | Specific Equipment Examples |
L/M (Low/Medium Speed) | Low-Noise Cooling for equipment where operational sound is a concern. | Blood Analyzers, Portable Medical Monitors, Laboratory Precision Instruments, Small Power Supply Units (PSUs). |
H/HH (High/Ultra-High Speed) | High-Density Component Cooling for image processing or computing units within high-performance diagnostic equipment. | Handheld Probe Interface Units for Ultrasound Equipment, Small Laser or Optical Devices. |
Performance Level | Specific Application Scenario | Specific Equipment Examples |
L/M (Low/Medium Speed) | Personal Electronics/Peripherals for supplementary cooling to maintain a comfortable operating temperature. | External Hard Drive (HDD) Enclosures, Mini Projectors, Desktop Mini PCs (NUCs). |
H/HH (High/Ultra-High Speed) | 3D Printing and DIY for cooling the print head or the printed model. | Extruder/Nozzle Cooling for 3D Printers (FDM/Resin), Mainboard Cooling. |
Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers’ performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
