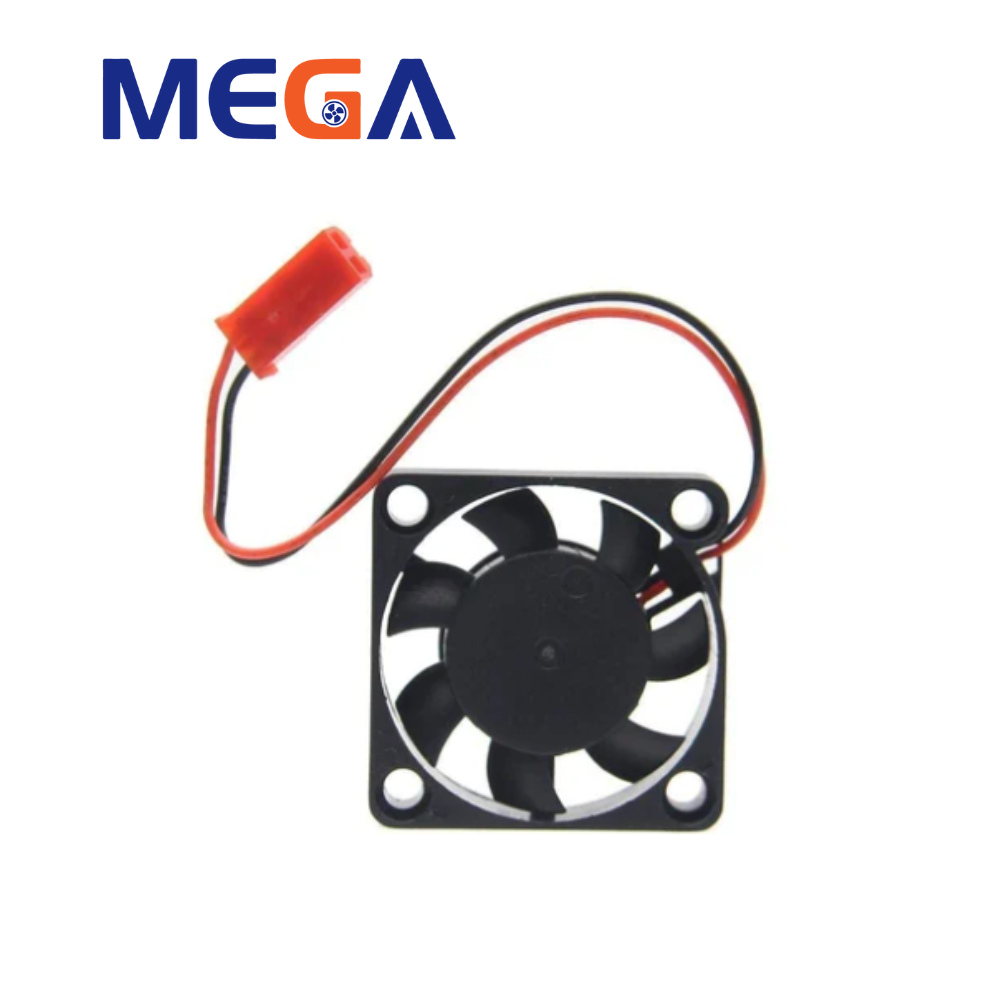

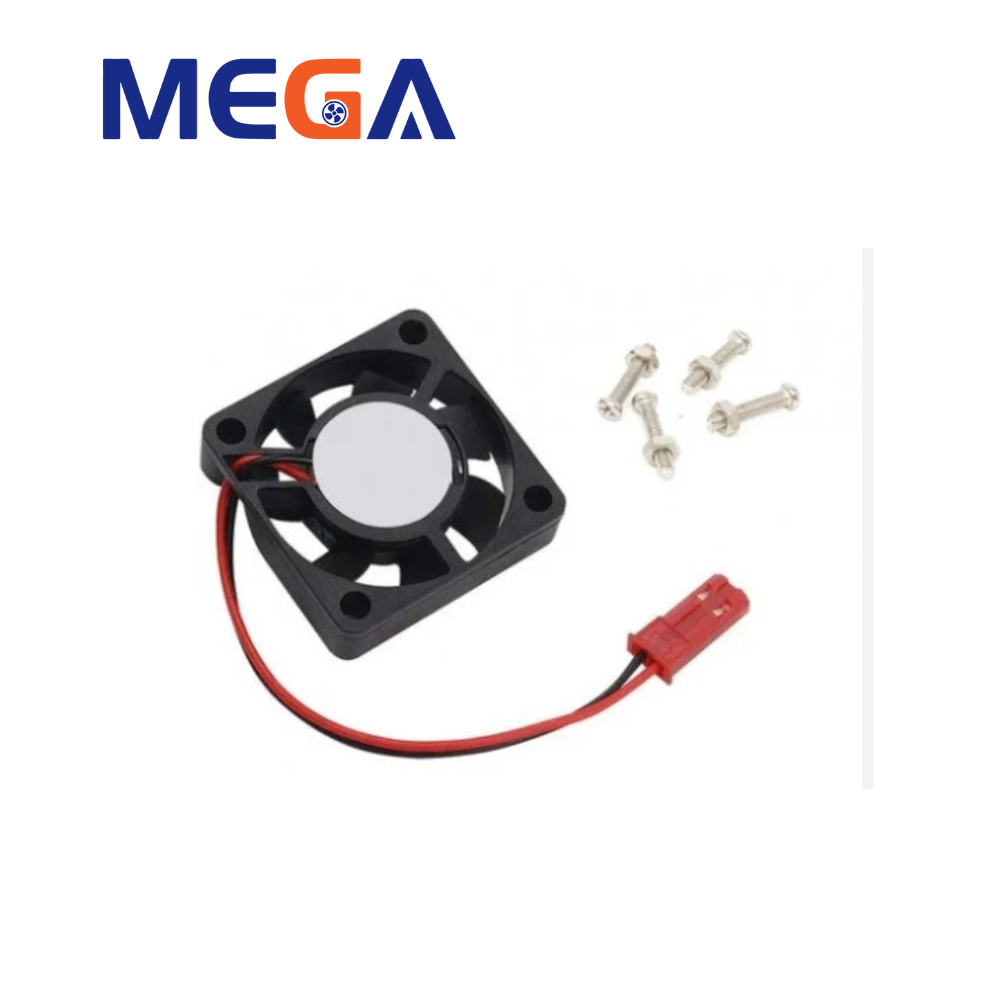

This is a 30x30x7mm brushless DC fan manufactured by Guangzhou Mega Technology Co., Ltd. It has passed certifications such as CE and RoHS, ensuring its quality and environmental friendliness.

Parameter Value

1. Product Type: DC brushless fan
2. Size: 30x30x7mm
3. Bearing Type: Ball、sleeve、HY、other
4. Frame Material: plastic (UL94V-0)
5. Blade Material: plastic (UL94V-0)
6. Weight:7g
7. Rated Voltage: 5V，12V
8. Operating Voltage Range: 1.8-3-6V （5V）, 8.5-13.5V（12V）
9. Rated Current: 0.06-0.24A
10. Rated Input Power: 0.72-1.2W
11. Speed: 6000-13000RPM
12. Air Flow: 1.99-4.25CFM
13. Maximum Air Pressure: 1.71-8.25mmH2O
14. Noise Level: 25.5-34.9dB-A

Key Features:

1. Compact Size: The 30x30x7mm dimension makes this fan ideal for devices with limited space.
2. Superior Materials: Both the frame and impeller are made of UL94V-0 flame-retardant plastic, ensuring excellent insulation and high-temperature resistance.
3. Diverse Bearings: Options include ball, sleeve, and hydraulic bearings, allowing for flexible matching based on different application environments and requirements.
4. Wide Voltage Range: Supports a wide voltage range from 1.8V to 13.5V, offering strong adaptability.
5. High Speed and Large Airflow: The maximum speed can reach 13000RPM, providing a large airflow and air pressure, suitable for devices with high cooling requirements.
6. Low Noise: Noise levels range from 25.5dB to 34.9dB, relatively low and causing minimal noise interference.
7. Multiple Models: Multiple models are available to choose from, allowing for selection based on the cooling needs of different devices.
8. Clear Coding Rules: The product model coding rules are clear and concise, making it easy for users to quickly query product parameters.

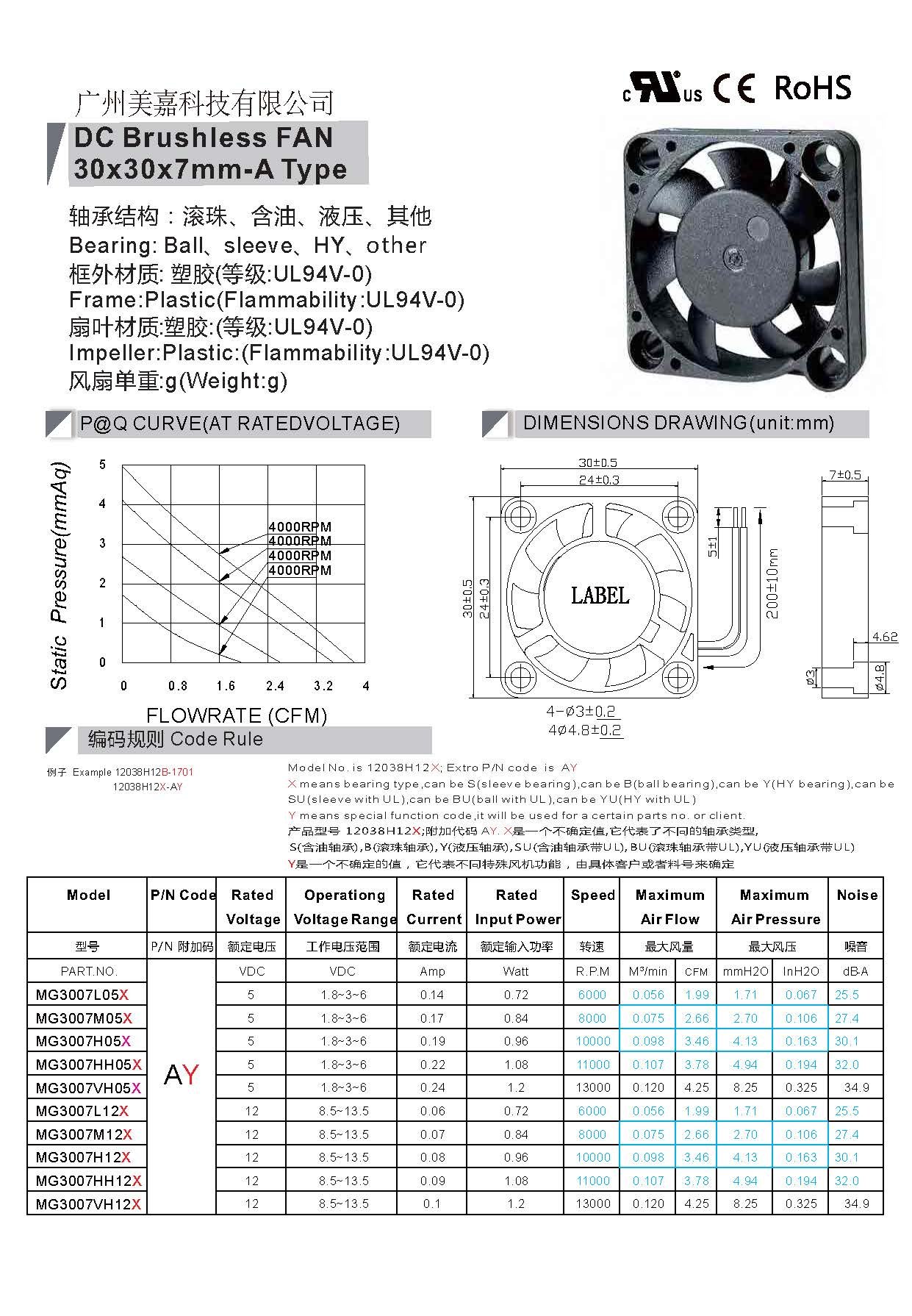

9. Detailed Performance Curves: Detailed curves of airflow, pressure, and power consumption are provided to help users intuitively understand product performance.

Advantages:

1. Excellent Heat Dissipation Performance: High speed and large airflow ensure excellent heat dissipation, effectively reducing the internal temperature of the device.
2. Wide Range of Applications: Suitable for cooling various electronic devices such as computers, communication equipment, industrial equipment, and household appliances.
3. High Reliability: Using high-quality materials and advanced manufacturing processes, it has high reliability and stability.
4. Long Service Life: After rigorous testing, the product has a long service life and can operate stably for a long time.
5. Easy Installation: The compact size makes it easy to install without taking up too much space.

Main application scenarios:

1. Computers and Peripherals
2. CPU Cooling: The compact size makes this fan suitable for installation on compact computer or laptop CPU heat sinks, effectively reducing CPU operating temperatures.
3. Graphics Card Cooling: It can be used as an auxiliary cooling fan for graphics cards, improving graphics card cooling performance, especially suitable for small-sized ITX cases.
4. Chassis Fan: It can be installed inside the chassis to enhance the overall ventilation of the chassis, reduce the internal temperature of the chassis, and extend the life of computer hardware.
5. Network Equipment
6. Routers: Used for router cooling to prevent the router from overheating and causing performance degradation or damage.
7. Switches: It can be installed inside the switch to enhance the cooling performance of the switch and improve equipment stability.
8. NAS Devices: Used for NAS device cooling to ensure long-term stable operation of the NAS device.
9. Industrial Control Equipment
10. PLCs: Can be used for PLC cooling to improve the reliability of PLC operation.
11. Inverters: It can be installed inside the inverter to enhance the cooling performance of the inverter and extend the service life of the equipment.
12. Industrial Controllers: Used for cooling various industrial controllers to ensure the stable operation of the control system.
13. Communication Equipment
14. Base Station Equipment: Can be used for cooling base station equipment to improve the operational stability of base station equipment.
15. Wireless Routers: Used for cooling wireless routers to enhance the stability of wireless signals.
16. Home Appliances
17. Set-top Boxes: Used for set-top box cooling to prevent the set-top box from overheating and causing freezes or crashes.
18. Small Air Conditioners: It can be used as an auxiliary cooling fan for small air conditioners to improve cooling efficiency.
19. Printers: Used for printer cooling to reduce printer operating noise.
20. Other Electronic Products
21. LED Lighting: Can be used for cooling LED lights to extend the life of LED lights.
22. Power Adapters: Can be used for cooling power adapters to improve the conversion efficiency of power adapters.
23. Portable Electronic Devices: Can be used for cooling portable electronic devices such as power banks and game consoles.

Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers’ performance at significantly lower prices.

We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. It is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
