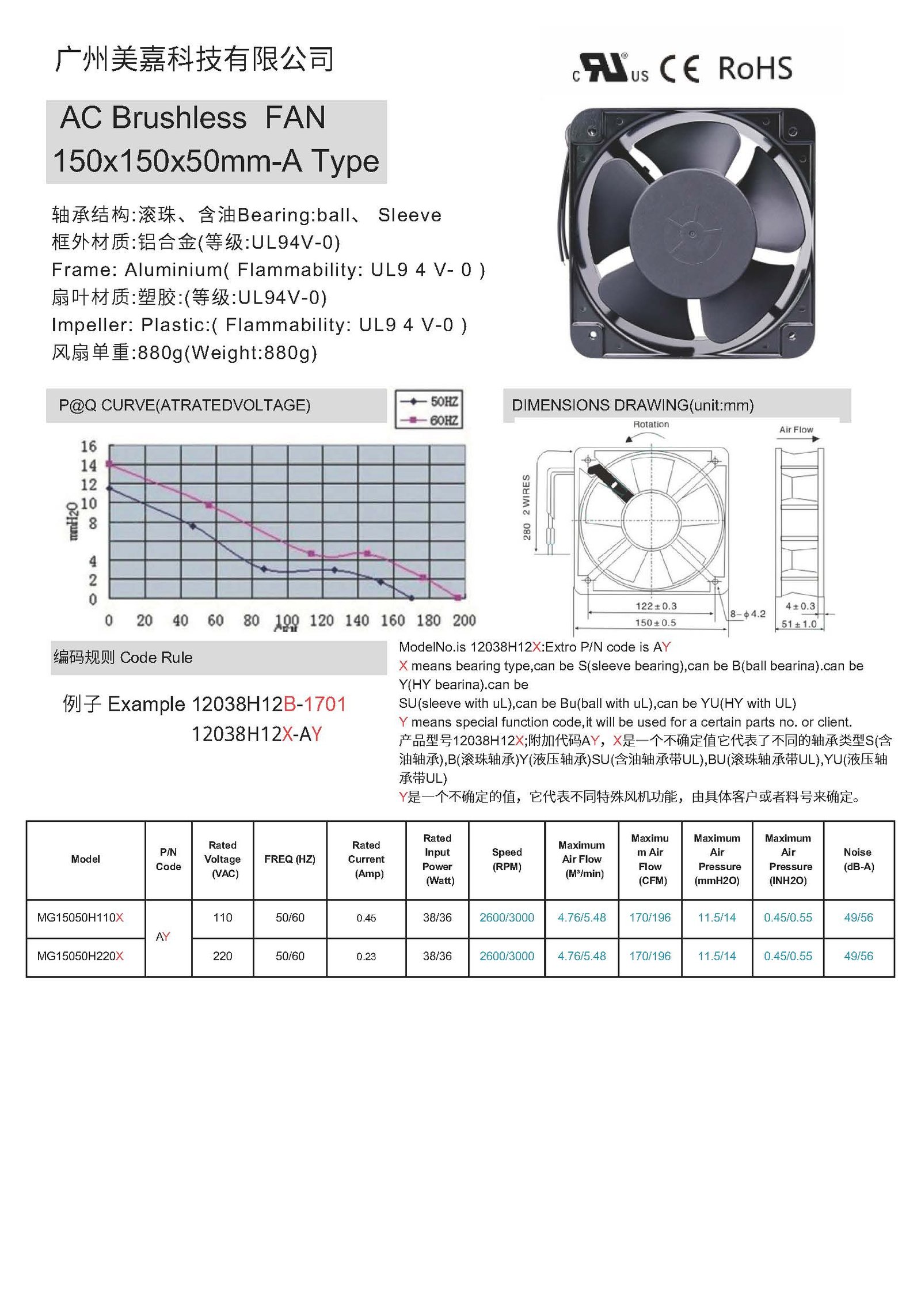

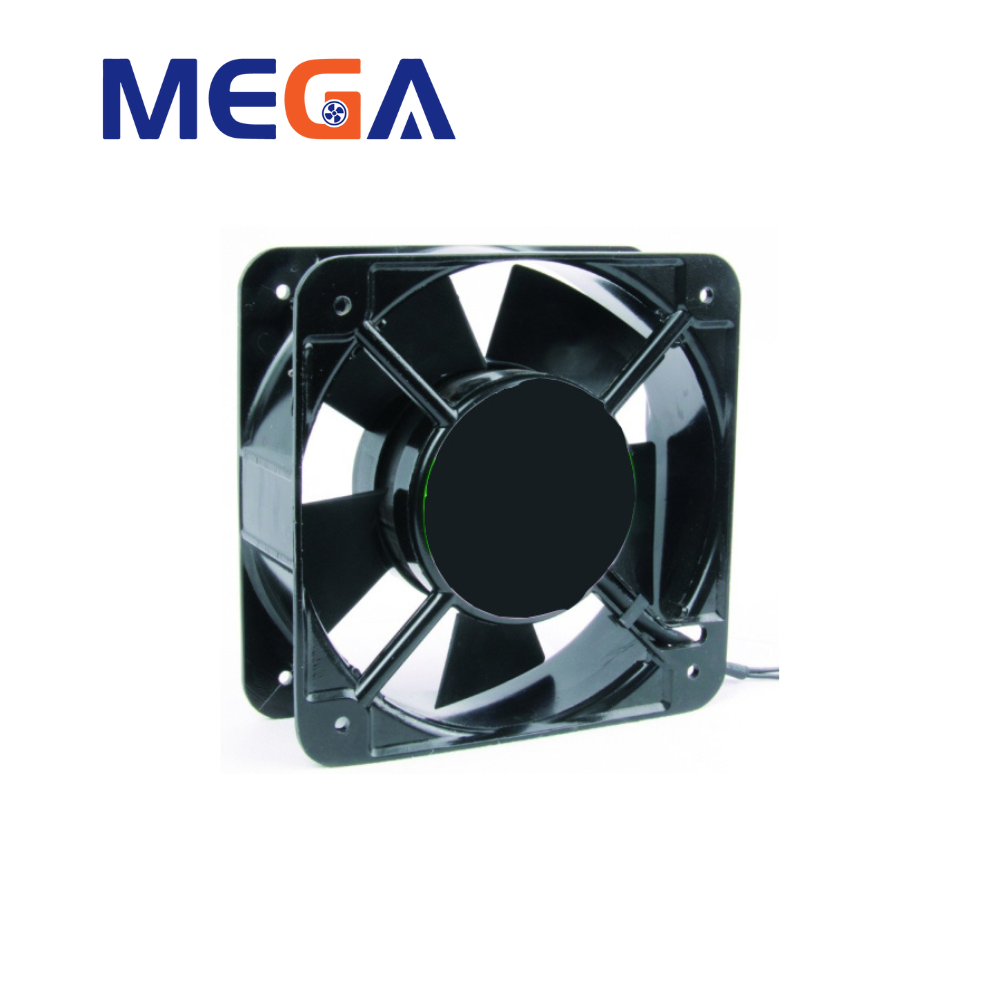

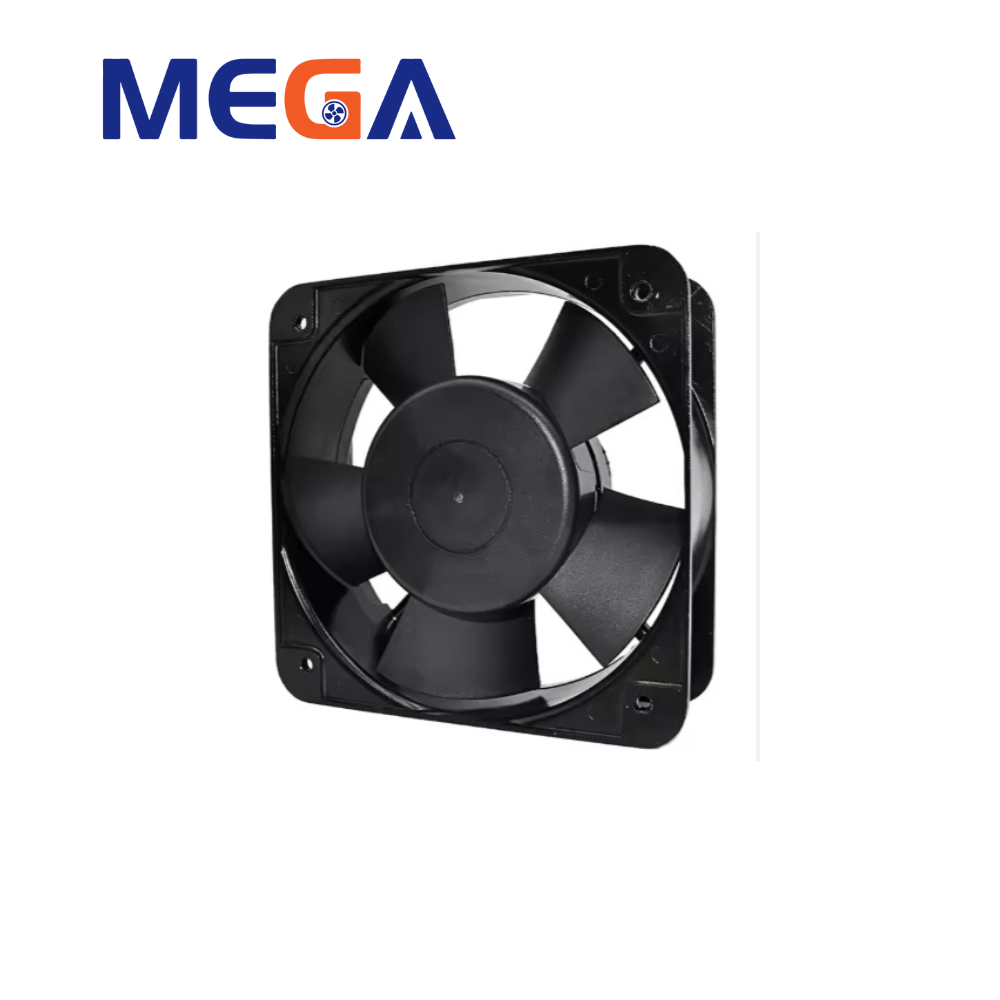

This is a 150x150x50mm-A AC brushless fan produced by Guangzhou Mega Technology Co., Ltd. This fan complies with international standards such as UL, cURus, CE and RoHS, uses an aluminum alloy frame and plastic impeller, and provides ball, oil-containing or sleeve bearing options. The product information below lists the electrical and performance parameters of two specific models, MG15050H110X and MG15050H220X, including rated voltage (110VAC and 220VAC), rated current, power, speed, maximum air volume, maximum static pressure and noise level, etc., providing users with comprehensive technical information so that they can make choices based on specific application requirements.

Parameter Value

Product Type: AC brushless fan

1. Size: 150x150x50mm
2. Bearing Type: ball、Sleeve
3. Frame Material: Aluminum (UL94V-0)
4. Blade Material: Plastic (UL94V-0)
5. Weight:880g
6. Rated Voltage: 110V,220V
7. Rated Current: 0.45A（110V）;0.23A（220V）；
8. Rated Input Power:38/36W
9. Speed:2600/3000RPM
10. Air Flow:170/196CFM
11. Maximum Air Pressure:11.5/14mH2O
12. Noise Level:49/56dB-A

Model	Rated Voltage (VAC)	Rated Current (Amp)	Rated Input Power (Watt)	Speed (RPM)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Maximum Air Pressure (INH2O)	Noise (dB-A)
MG15050H110X	110	0.46	38/36	2600/3000	170/196	11.5/14	0.45/0.55	49/56
MG15050H220X	220	0.23	38/36	2600/3000	170/196	11.5/14	0.45/0.55	49/56

Key Features and Advantages:

Key Features:

1.  AC Brushless Design:

1.   Feature: Powered by AC current, eliminating the need for DC-AC conversion and simplifying power systems. The brushless design means no brush wear, typically leading to a longer lifespan.

2.   Advantage: Compared to brushed motors, brushless motors generally offer lower noise, higher efficiency, longer lifespan, and require less maintenance.

2.  Multiple Bearing Type Options:

1.   Feature: Available with various bearing types, including Ball, Oil Bearing, and Sleeve.

2.   Advantage: Allows customers to choose based on application requirements such as cost, noise level, expected lifespan, and mounting orientation. For instance, ball bearings typically offer the longest lifespan and are suitable for high-reliability applications, while oil and sleeve bearings might be more economical and quieter.

3.  Standard Dimensions and Versatility:

1.   Feature: Measures 150x150x50mm, a common standard size in industrial and electronic cooling applications.

2.   Advantage: Easy to integrate into existing systems and equipment, reducing the complexity of design and modification, thus offering good versatility.

4.  High-Quality Materials and Fire Rating:

1.   Feature: Frame made of aluminum alloy (UL94V-0) and impeller made of plastic (UL94V-0).

2.   Advantage: UL94V-0 is the highest rating for flame-retardant materials, indicating that the material self-extinguishes quickly in burn tests, significantly enhancing product safety and reliability, especially in electronic devices where fire hazards might exist. The aluminum alloy frame also provides good structural strength and heat dissipation.

5.  Wide Voltage Compatibility:

1.   Feature: Available in two rated voltage models: 110VAC (MG15050H110X) and 220VAC (MG15050H220X).

2.   Advantage: Caters to power standards in different countries and regions (e.g., 110V common in North America, 220V common in Asia and Europe), improving the product’s adaptability to global markets.

6.  High Performance Parameters:

1.   Feature: Maximum airflow up to 196 CFM (at 60Hz), maximum static pressure up to 14 mmH2O (at 60Hz), and noise level controlled within 56 dB-A.

2.   Advantage: Capable of providing powerful cooling, suitable for applications requiring high airflow and static pressure for effective heat dissipation, while maintaining an acceptable noise level for industrial fans.

7.  International Certifications:

1.   Feature: Holds multiple international certifications, including UL, cURus, CE, and RoHS.

2.   Advantage: Demonstrates that the product complies with stringent international safety, quality, and environmental standards, facilitating global sales and distribution, and boosting customer confidence in product quality.

Main Advantages:

1.  Reliability and Long Lifespan: The brushless motor, combined with various optional bearing types (especially ball bearings) and high-grade flame-retardant materials, significantly enhances the overall reliability and service life of the fan, reducing maintenance costs and replacement frequency.

2.  Strong Environmental Adaptability: Wide voltage input and RoHS compliance enable it to operate under different power systems and environmental regulations worldwide. The high-grade flame-retardant materials further enhance safety.

3.  Efficient Heat Dissipation Capability: The high maximum airflow and static pressure parameters indicate that the fan can effectively remove heat from equipment, making it suitable for industrial equipment, power supplies, servers, and other applications that demand high cooling performance.

4.  Flexibility and Customization: The inclusion of bearing types and special function codes in the product’s coding rule suggests a degree of flexibility and customization potential, allowing for adjustments based on specific customer requirements.

5.  High Safety: Both the frame and impeller meet the UL94V-0 flame retardancy rating, along with UL, CE, and other safety certifications, ensuring high safety during operation and mitigating potential fire risks.

Applications

1. Industrial Control and Automation Equipment:

1. PLC (Programmable Logic Controller) Cabinets/Control Panels: In industrial automation systems, devices like PLCs, variable frequency drives (VFDs), and servo drives generate significant heat during operation. Fans are used to ensure these precise electronic components operate within suitable temperature ranges, preventing overheating failures.
2. Power Distribution Cabinets/Power Supply Units: Circuit breakers, contactors, rectifiers, and other components inside large power distribution cabinets or power supply units require continuous heat dissipation to prevent tripping or damage due to overheating.
3. Industrial PCs/Embedded Systems: Dedicated computers and embedded systems used in industrial environments, often operating in harsh conditions, require powerful fans to maintain stable operation.
4. Automated Production Line Equipment: For example, control boxes for welding robots, laser cutting machine control units, and electrical cabinets for CNC machine tools all require forced air cooling from fans.

2. Telecommunication Equipment:

1. Server Racks/Network Cabinets: Servers, switches, routers, and other network equipment in data centers and telecommunication base stations generate enormous amounts of heat. The 150x150x50mm fan can serve as an exhaust or intake fan for these cabinets, ensuring stable equipment operation.
2. Telecom Base Stations/Outdoor Communication Cabinets: The internal temperature of outdoor communication equipment and base station enclosures can easily rise, necessitating active fan cooling to protect internal communication modules, power supply units, etc.
3. Broadcast and Television Equipment: Large professional equipment such as broadcast transmitters, receivers, and television relay equipment, whose internal power amplifiers and processing boards also require efficient heat dissipation.

3. Medical Devices:

1. Medical Imaging Equipment: Such as CT scanners, MRI machines, and ultrasound diagnostic instruments, where high-heat-generating components like X-ray tubes and image processing units require continuous heat dissipation to ensure diagnostic accuracy and equipment longevity.
2. Laboratory Analytical Instruments: Various large laboratory analytical instruments, such as chromatographs, mass spectrometers, and DNA sequencers, have internal electronic components and optical systems sensitive to temperature, requiring precise temperature control.
3. Medical Power Supplies/Control Systems: Units providing stable power and control for medical equipment also require fans for cooling.

4. Power and New Energy Equipment:

1. Inverters/UPS (Uninterruptible Power Supplies): Solar inverters, wind power converters, and large UPS systems have power modules (e.g., IGBTs) that generate significant heat during operation, making fans critical cooling components.
2. Charging Stations/Battery Management Systems: Electric vehicle charging stations and large energy storage battery management systems require fans for heat dissipation to ensure battery safety and performance.

5. Specialized Machinery and Equipment:

1. Printing Equipment: Drive motors and control boards inside large printing presses and laser printers generate heat and require fan assistance for cooling.
2. ATMs/Self-Service Terminals: Bank ATMs, self-service ticketing machines, advertising kiosks, etc., require fans to ensure the stable operation of internal electronic components during long hours of operation and in outdoor environments.
3. LED Displays/Lighting Equipment: Large outdoor LED displays and stage lighting equipment have internal power supplies and control boards that generate heat, especially in hot outdoor environments, making fans indispensable.

6. Transportation Sector:

1. Rail Transit Control Systems: Signal control systems for subways and high-speed rail, on-board power converters, etc.
2. In-Vehicle Entertainment/Information Systems: While DC fans are typically used in vehicles, some large buses or specialized vehicles with AC systems might also utilize such fans.
