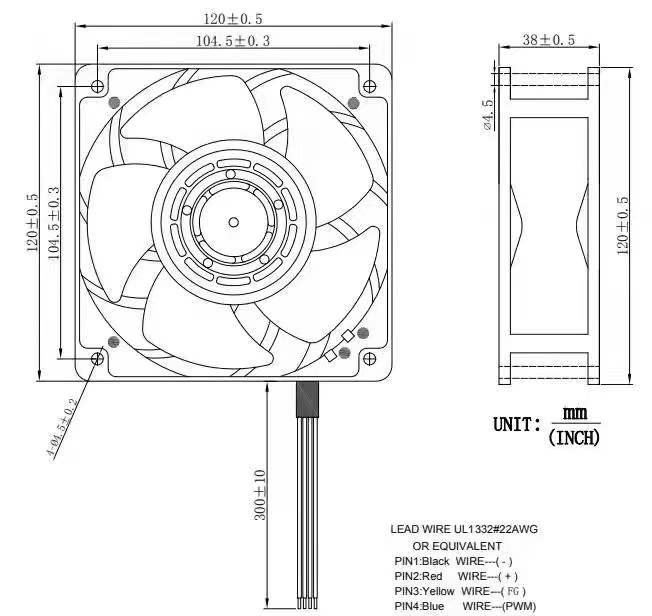

120 x 120 x 38 mm DC Highest Air Flow Axial Flow Fan

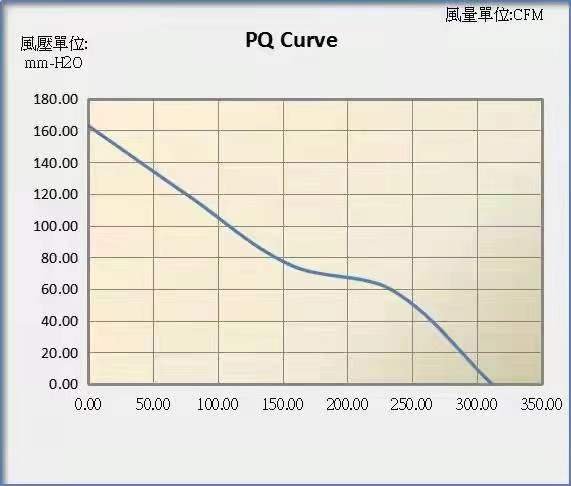

120x120x38 mm, with the highest air flow : 11000rpm, air volume 311.68 CFM, static pressure 162.89 Ps (mmH2O),
Accept Customized Requirement
Applicaion : Oven, Mechanical equipment, electric welding machine, electric control cabinet
Additional information
| Voltage | 12V, 24V, 48V |
|---|---|
| Bearing Type | Ball Bearing |
| RPM | 11000rpm |
| Air Flow | 311.68CFM |
| Connector | Customized |
| Function & Wire | 2 PIN, 3PIN, 4PIN, FG, PWM, RD |
For other products not shown on website, please contact our team.
inquiry@cnmegatech.com
Product Details:
Mega achieves the highest airflow and increased static pressure to date by combining an anti-vibration motor, optimizing the fan blade shape and utilizing the fan runner design.
XGC0384BX-1000U-A9H Replacement
Accept Customized Requirement OEM ODM
If you can’t find the suitable fan in website, please feel free to send email with your requirement to inquiry@cnmegatech.com
Video please kindly check: https://www.youtube.com/shorts/jA6ZrAsWYYM
