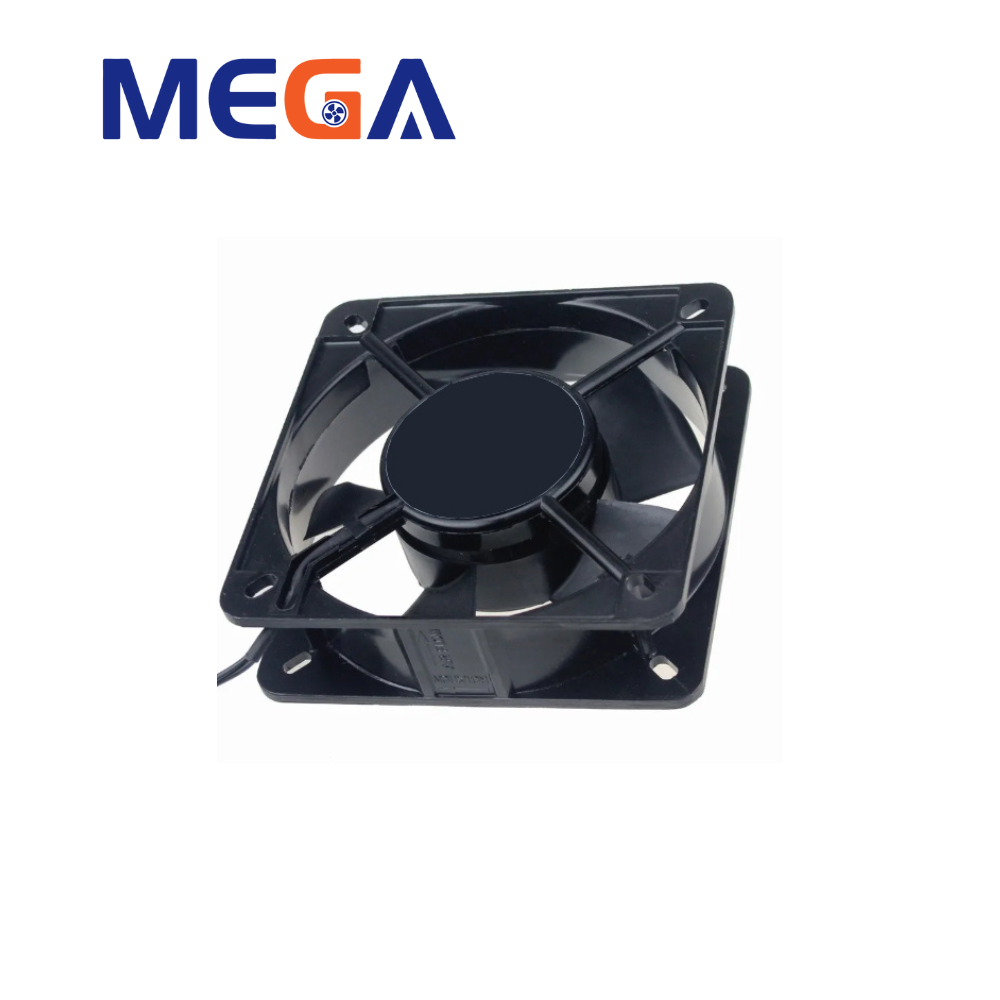

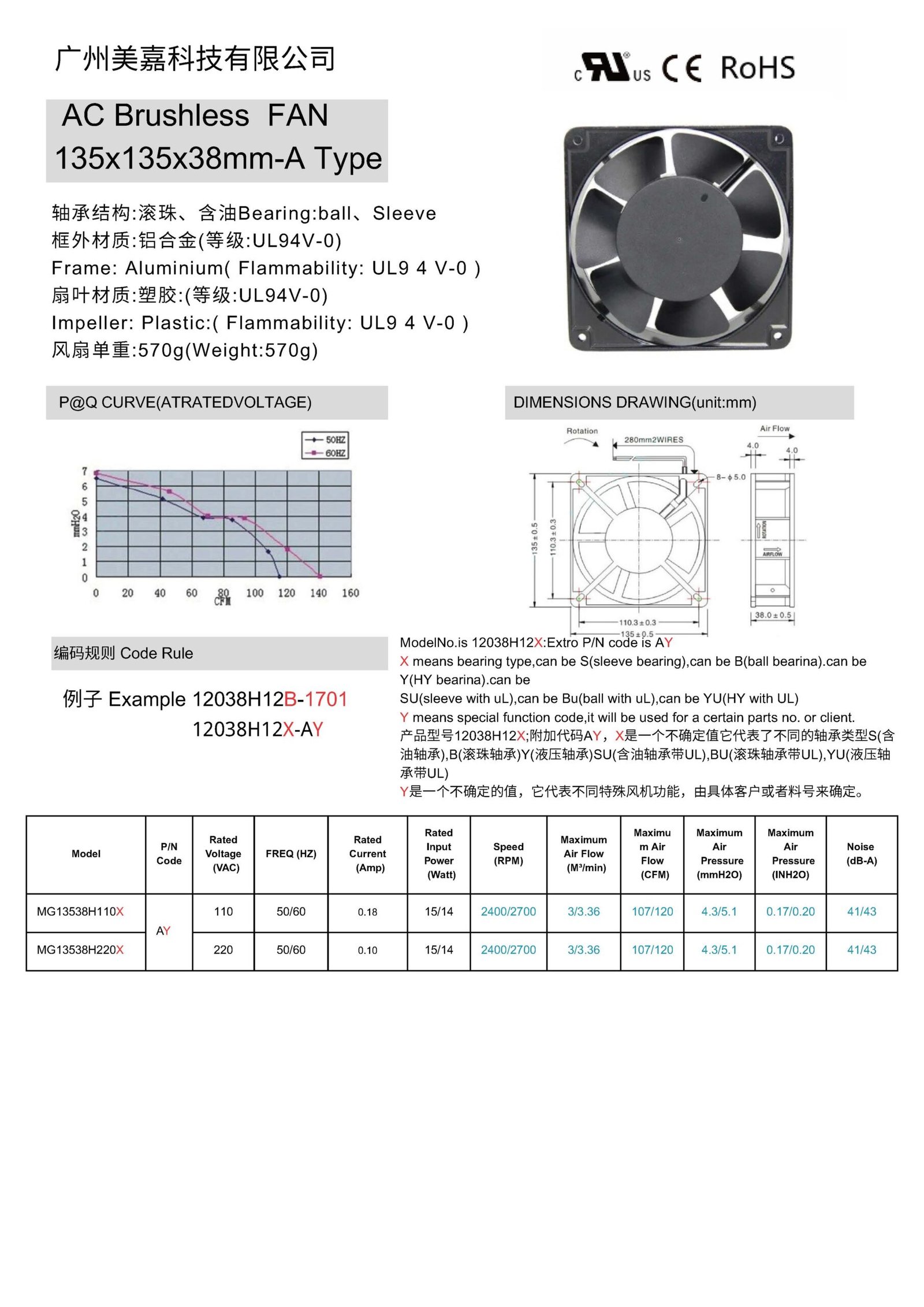

This is a 135x135x38mm AC brushless fan product produced by Guangzhou Mega Technology Co., Ltd. The fan uses an aluminum alloy frame and plastic blades, both of which have a UL94V-0 flame retardant rating, a single weight of 570 grams, and supports sleeve or ball bearing structures. The product has a detailed fan dimension drawing, static pressure-air volume performance curve, and provides coding rules for parsing the various characteristics of the product model (such as speed, voltage, and bearing type). In addition, the specific parameters of its two main models (MG13538H110X and MG13538H220X), which are suitable for 110VAC and 220VAC power supplies respectively.

Parameter Value

Product Type: AC brushless fan

1. Bearing Type: ball、Sleeve
2. Frame Material: Aluminum (UL94V-0)
3. Blade Material: Plastic (UL94V-0)
4. Weight:570g
5. Rated Voltage: 110V,220V
6. Rated Current: 0.18A（110V）;0.10A（220V）；
7. Rated Input Power:15/14W
8. Speed:2400/2700RPM
9. Air Flow:107/120CFM
10. Maximum Air Pressure:4.3/5.1mH2O
11. Noise Level:41/43dB-A

Model	Rated Voltage (VAC)	FREQ (HZ)	Rated Current (Amp)	Rated Input Power (Watt)	Speed (RPM)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
MG13538H110X	110	50/60	0.18	15/14	2400/2700	107/120	4.3/5.1	41/43
MG13538H220X	220	50/60	0.1	15/14	2400/2700	107/120	4.3/5.1	41/43

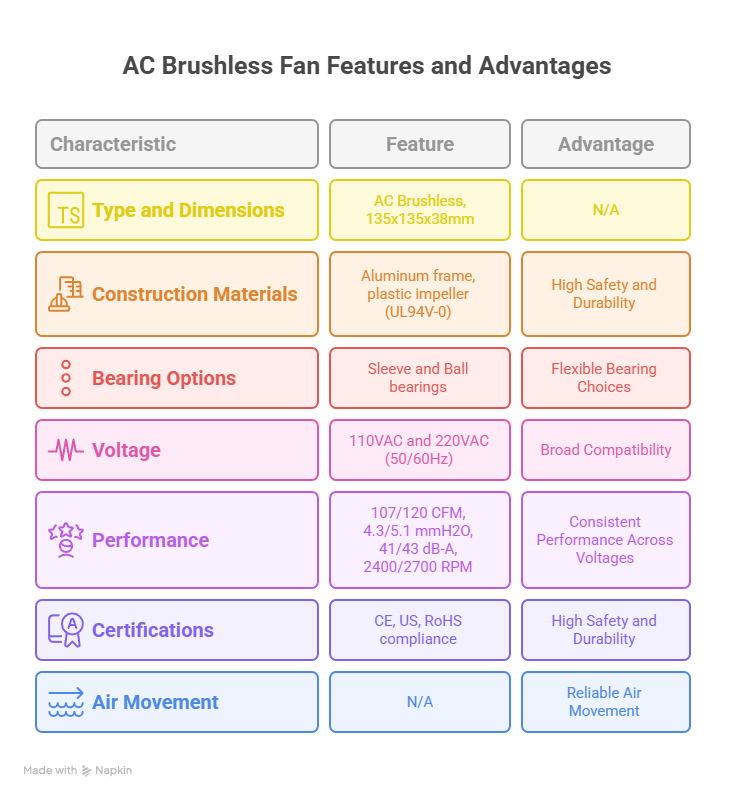

Key Features and Advantages:

Main Features:

1.  Type and Dimensions: This is an AC Brushless Fan with standardized dimensions of 135x135x38mm, making it suitable for various applications requiring this specific size.

2.  Robust Construction Materials: The fan features an Aluminum frame and a plastic impeller, both conforming to UL94V-0 flammability standards, indicating good fire resistance.

3.  Bearing Options: It supports both Sleeve and Ball bearing structures, offering flexibility for different application requirements concerning lifespan and noise levels.

4.  Voltage Versatility: The product line includes models for both 110VAC and 220VAC (50/60Hz), making it compatible with different regional power standards.

5.  Performance Metrics: For both voltage models, the fan offers consistent maximum air flow (107/120 CFM), maximum static pressure (4.3/5.1 mmH2O), and a relatively low noise level (41/43 dB-A) at speeds of 2400/2700 RPM.

6.  Certifications: The product is marked with CE, US, and RoHS compliance, indicating adherence to European, American, and hazardous substance restrictions, respectively.

Main Advantages:

1.  High Safety and Durability: The use of UL94V-0 rated aluminum and plastic, combined with CE and RoHS certifications, ensures high safety standards, fire resistance, and environmental compliance, contributing to product longevity.

2.  Broad Compatibility: With models supporting both 110V and 220V power inputs, this fan can be easily integrated into diverse global systems and equipment.

3.  Consistent Performance Across Voltages: Despite operating on different voltages, the fan maintains comparable air flow, static pressure, and RPM, providing reliable cooling performance regardless of the specific power supply model chosen.

4.  Flexible Bearing Choices: The availability of both sleeve and ball bearings allows customers to select the optimal solution based on their specific needs for operational lifespan, cost, and acoustic performance.

5.  Reliable Air Movement: The specified maximum air flow and static pressure indicate strong air movement capabilities, suitable for effective cooling in various electronic and industrial applications.

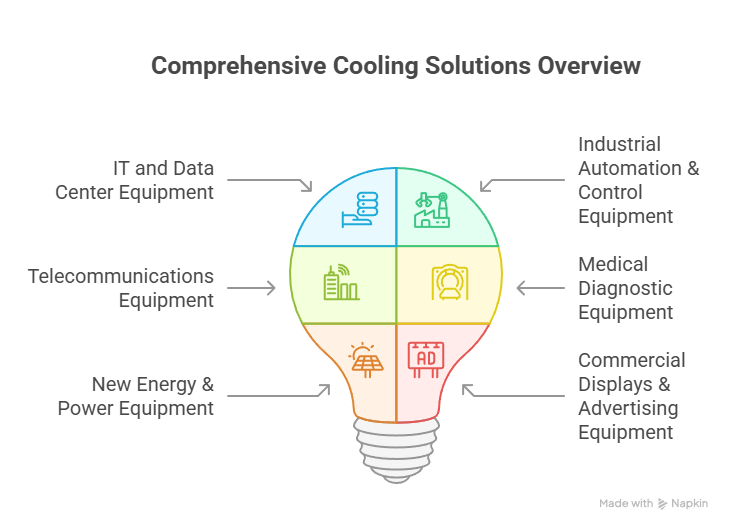

Applications

1.  IT and Data Center Equipment:

1.   Server Cabinets / Servers: Used for cooling high-heat-generating components inside servers, such as CPUs, GPUs, and power supply units, ensuring stable operation of data center servers.

2.   Network Switches & Routers: The chips and power modules within high-density network devices require efficient heat dissipation to prevent performance degradation or failure due to overheating.

3.   Storage Arrays (NAS/SAN): Heat generated by hard drives and controllers in large-capacity storage devices needs to be promptly expelled to extend equipment lifespan and ensure data reliability.

4.   UPS (Uninterruptible Power Supply) Systems: In large UPS systems, components like batteries and inverters generate significant heat during charging and discharging, requiring forced air cooling by fans.

2.  Industrial Automation & Control Equipment:

1.   Electrical Control Cabinets: Control cabinets on various industrial production lines integrate heat-generating components such as PLCs (Programmable Logic Controllers), inverters, contactors, and relays. Fans are used to maintain the internal temperature within a safe range.

2.   Inverters & Servo Drives: These devices generate substantial heat during operation, and fans are critical components of their internal cooling systems.

3.   Industrial Power Supplies: For cooling internal components of high-power industrial power supply modules.

4.   Industrial PCs: For reliable cooling systems in industrial computers operating in harsh industrial environments.

5.   Robot Controllers: Heat dissipation for electronic components within industrial robot control boxes.

3.  Telecommunications Equipment:

1.   Base Stations: Radio frequency modules and processing units in mobile communication base stations require efficient heat dissipation to ensure stable and reliable signal transmission.

2.   Telecom Cabinets: Used for cooling various telecommunication equipment inside outdoor or indoor telecom cabinets.

4.  Medical Diagnostic Equipment:

1.   Large Medical Imaging Equipment: Such as CT scanners, MRI machines, etc., whose internal power supplies, X-ray tubes, and computer processing units generate substantial heat, requiring forced air cooling.

2.   Medical Power Supplies: For cooling modules that provide stable power in medical devices.

5.  New Energy & Power Equipment:

1.   EV Charging Stations: Heat dissipation for power modules and control units inside high-power electric vehicle charging stations.

2.   Inverters & Converters: Devices like solar inverters and wind power converters that convert DC to AC power generate significant heat.

3.   Distribution Cabinets: Used for cooling circuit breakers, busbars, and other components in high-voltage or high-current power distribution cabinets.

6.  Commercial Displays & Advertising Equipment:

1.   Large LED Displays: Especially outdoor LED displays, where LED modules and control circuits generate substantial heat during prolonged operation, requiring fans for cooling to ensure display quality and extend lifespan.

2.   Digital Signage / Advertising Kiosks: Cooling for embedded computers and display modules in indoor and outdoor advertising machines.
